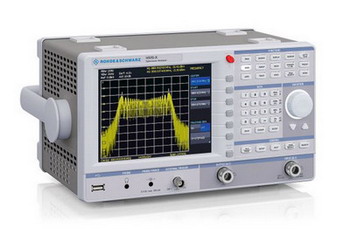

HMS-X 頻譜分析儀




產品特點
頻率範圍 : 100 kHz至1.6 GHz / 3 GHz
頻譜純度 : > - 100 dBc(1 Hz)(100 kHz時)
掃描時間:20 ms至1000 s
各種標記/ delta標記和峰值功能
偵測器 : auto/min./max. peak, sample, RMS, average, quasi-peak
Tracking generator : Frequency range: 5 MHz to 1.6 GHz/3 GHz
直接將數據導出到USB隨身碟
通過RS-232 / USB雙接口進行遠程控制
無風扇設計和快速啟動時間








綜合型錄下載

型錄下載(英文)

使用手冊下載


Specifications
Item
RTA4004
RTA4004 with
-B243 option
RTA4004 with
-B245 option
RTA4004 with
-B2410 option
Bandwidth (–3 dB)
50Ω input
200 MHz
350 MHz
500 MHz
1 GHz
1 MΩ input
200 MHz
350 MHz
500 MHz
500 MHz
Vertical system
Vertical resolution
10 bit, up to 16 bit with high resolution decimation
DC gain accuracy
±1 %... (input sensitivity > 5 mV/div)
±1.5 % (input sensitivity 5 mV/div to 1 mV/div )
±2.5 % (input sensitivity < 1 mV/div)
Input sensitivity
50Ω input
0.5 mV/div to 1 V/div
1 MΩ input
0.5 mV/div to 10 V/div
RMS noise floor (meas.)
50Ω input
(0.5 mV/div~1 V/div)
0.05mV~22.7mV
0.07mV~22.8mV
0.08mV~25.1mV
0.11mV~31.4mV
1 MΩ input
(0.5 mV/div~10 V/div)
0.09mV~226mV
0.1mV~250mV
0.13mV~298mV
0.13mV~298mV
Maximum
input voltage
50Ω input
5 V (RMS), max. 30 V (Vp)
1 MΩ input
300 V (RMS), 400 V (Vp), derates at
20 dB/decade to 5 V (RMS) above 250 kHz
Rise time
< 1.75 ns
< 1 ns
< 700 ps
< 350 ps
Horizontal system
Timebase
range
0.5 ns/div and 500 s/div
accuracy
±1 ppm (during calibration interval)
Trigger system
Trigger
level
±5 div from center of screen
modes
auto, normal, single, n single
Hold-off range
inactive or 51.2 ns to 13.7 s
types
edge, width, video, pattern, runt, rise time,
fall time, serial bus, line, timeout
Edge trigger A
trigger events
rising edge, falling edge, both edges
coupling
DC, AC (attenuates < 10 Hz (meas.)),
LF reject (attenuates < 10 kHz (meas.))
Edge trigger A and B
trigger events
rising edge, falling edge, both edges
Width trigger
events
pulse width is smaller, greater, equal,
unequal, inside interval, outside interval
pulse width
3.2 ns ~ 6.8 s
Timeout trigger
events
greater than timeout
timeout range
3.2 ns ~ 6.8 s
Video trigger
events
selectable line, all lines, even frame,
odd frame, all frames
supported standards
PAL, NTSC, SECAM, PAL-M, SDTV 576i,
HDTV 720p, HDTV 1080i, HDTV 1080p
Pattern trigger
Runt trigger
Rise time, fall time
Serial bus trigger
External trigger input

reference to Specifications Data Sheet

Digital channel inputs
D15 to D8, D7 to D0 (RTA-B1 option)

Menu languages
Traditional Chinese,Simplified Chinese ,English,German,French,
Spanish,Italian, Portuguese,Czech,Polish,Russian,Korean,Japanese
Interface
USB 1 port, type B plug, version 2.0
LAN 1 port, 1 Gbit

Choose additional probes
Single-ended
passive probes
RT-ZP05S 500 MHz, 10 MΩ, 10:1, 300 V, 10 pF, 5 mm
RT-ZP10 500 MHz, 10 MΩ, 10:1, 400 V, 9.5 pF, 2.5 mm
RT-ZP1X 38 MHz, 1 MΩ, 1:1, 55 V, 39 pF, 2.5 mm
Active broadband
probes:
single-ended
RT-ZS10L 1.0 GHz, 10:1, 1 MΩ, BNC interface
RT-ZS10E 1.0 GHz, active, 1 MΩ, R&S interface
RT-ZS10 1.0 GHz, active, 1 MΩ, R&S ProbeMeter, micro button, R&S probe interface
RT-ZS20 1.5 GHz, active, 1 MΩ, R&S ProbeMeter, micro button, R&S probe interface
Active broadband probes: differential RT-ZD10 1.0 GHz, active, differential, 1 MΩ, R&S ProbeMeter, micro button,
incl. 10:1 external attenuator, 1 MΩ, 70 V DC, 46 V AC (peak),
R&S probe interface
RT-ZD20 1.5 GHz, active, differential, 1 MΩ, R&S ProbeMeter, micro button,
R&S probe interface
RT-ZPR20
Power rail probe
2.0 GHz, 1:1, 50 kΩ, ±0.85 V, ±60 V offset, R&S probe interface
High voltage
single-ended
passive probes
RT-ZH03 250 MHz, 100:1, 100 MΩ, 850 V, 6.5 pF
RT-ZH10 400 MHz, 100:1, 50 MΩ, 1000 V, 7.5 pF
RT-ZH11 400 MHz, 1000:1, 50 MΩ, 1000 V, 7.5 pF
High voltage probes: differential RT-ZD002 25 MHz, 20:1/200:1, 4 MΩ, 1.4 kV (CAT III), BNC interface
RT-ZD003 25 MHz, 10:1/100:14 MΩ, 700 V (CAT II), BNC interface
RT-ZD01 100 MHz, 8 MΩ, 1 kV (RMS) (CAT III), BNC interface
RT-ZD02 200 MHz, 10:1, ±20 V, BNC interface
RT-ZD08 800 MHz, 10:1, 200 kΩ, ±15 V, BNC interface
RT-ZHD07 200 MHz, 250:1/25:1, 5 MΩ, 750 V (peak), 300 V CAT III, R&S probe interface
RT-ZHD15 100 MHz, 500:1/50:1, 10 MΩ, 1500 V (peak), 1000 V CAT III, R&S probe interface
RT-ZHD16 200 MHz, 500:1/50:1, 10 MΩ, 1500 V (peak), 1000 V CAT III, R&S probe interface
RT-ZHD60 100 MHz, 1000:1/100:1, 40 MΩ, 6000 V (peak), 1000 V CAT III, R&S probe interface
Current probes RT-ZC02 20 kHz, AC/DC, 0.01 V/A and 0.001 V/A, ±200 A and ±2000 A, BNC interface
RT-ZC03 100 kHz, AC/DC, 0.1 V/A, 30 A, BNC interface
RT-ZC05B 2 MHz, AC/DC, 0.01 V/A, 500 A (RMS), R&S probe interface
RT-ZC10 10 MHz, AC/DC, 0.01 V/A, 150 A (RMS), BNC interface
RT-ZC10B 10 MHz, AC/DC, 0.01 V/A, 150 A (RMS), R&S probe interface
RT-ZC15B 50 MHz, AC/DC, 0.1 V/A, 30 A (RMS), R&S probe interface
RT-ZC20 100 MHz, AC/DC, 0.1 V/A, 30 A (RMS), BNC interface
RT-ZC20B 100 MHz, AC/DC, 0.1 V/A, 30 A (RMS), R&S probe interface
RT-ZC30 120 MHz, AC/DC, 1 V/A, 5 A (RMS), BNC interface
EMC near-field probes HZ-15 Probe set for E and H near-field measurements, 30 MHz to 3 GHz
Logic probes RT-ZL04 400 MHz logic probe, 8 channels

Option
Hardware RTA-B1 Mixed signal option, additional 16 logic channels
RTA-B6 Waveform generator and 4-bit pattern generator
Software RTA-K1 I2C triggering and decoding and SPI triggering and decoding
RTA-K2 UART/RS-232/RS-422/RS-485 triggering and decoding
RTA-K3 CAN triggering and decoding and LIN triggering and decoding
RTA-K5 Audio (I2S, LJ, RJ, TDM) triggering and decoding
RTA-K6 MIL-STD-1553 triggering and decoding
RTA-K7 ARINC 429 triggering and decoding
RTA-K18 Spectrum analysis and spectrogram
RTA-K31 Power analysis
RTA-K36 Frequency response analysis – Bode plot


















.
