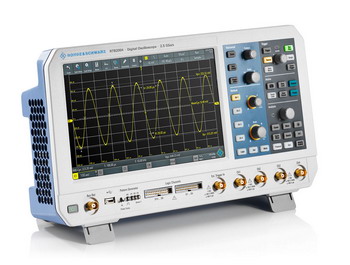

RTB2000 數位式示波器 |
 |
| 產品特點 |
|
|
最大帶寬：70MHz至
300MHz| 綜合型錄下載 |
| 型錄下載(英文) |
| 型錄下載(中文) |
規格下載  |
| 使用手冊下載 |
| Specifications | ||||||
| RTB2002 (2CH) | ||||||
| Item | RTB2002 |
RTB2002 with -B221 |
RTB2002 with -B222 |
RTB2002 with -B223 |
||
| Bandwidth | 1
MΩ |
> 70 MHz |
> 100 MHz |
> 200 MHz |
> 300 MHz |
|
| RTB2004 (4CH) | ||||||
| Item | RTB2004 |
RTB2004 with -B241 |
RTB2004 with -B242 |
RTB2004 with -B243 |
||
| Bandwidth | 1 MΩ |
> 70 MHz |
> 100 MHz |
> 200 MHz |
> 300 MHz |
|
| Vertical system | ||||||
| Vertical resolution | 10
bit, up to 16 bit with high resolution decimation |
|||||
| DC gain accuracy |
|
|||||
| Input sensitivity | 1 MΩ input |
1
mV/div to 5 V/div |
||||
| Maximum input voltage |
50Ω input |
5
V (RMS), max. 30 V (Vp) |
||||
| 1 MΩ input |
300
V (RMS), 400 V (Vp), derates at 20 dB/decade to 5 V (RMS) above 250 kHz |
|||||
| Rise time | < 5 ns |
< 3.5 ns |
< 1.75
ns |
< 1.15
ns |
||
| Horizontal system | ||||||
| Timebase | range |
1
ns/div and 500 s/div |
||||
accuracy |
±3.5
ppm (during calibration interval) |
|||||
| Trigger system | ||||||
| Trigger | level |
±5
div from center of screen |
||||
| modes |
auto,
normal, single, n single with R&S RTM-K15 option |
|||||
| Hold-off range |
inactive
or 50 ns to 10 s |
|||||
| types |
edge,
width, video, pattern, serial bus, line, timeout |
|||||
| Edge trigger A | trigger events |
rising
edge, falling edge, both edges |
||||
| coupling |
DC,
AC, HF reject (attenuates > 50 kHz (meas.)), LF reject (attenuates < 50 kHz (meas.)), noise reject (enlarges trigger hysteresis) |
|||||
| Width trigger | events |
pulse
width is smaller, greater, equal, unequal, inside interval, outside interval |
||||
| pulse width |
6.4
ns ~ 13.5 s |
|||||
| Video trigger | events |
selectable
line, all lines, even frame, odd frame, all frames |
||||
supported
standards |
PAL,
NTSC, SECAM, PAL-M, SDTV 576i, HDTV 720p, HDTV 1080i, HDTV 1080p |
|||||
| Pattern trigger Serial bus trigger External trigger input |
reference
to Specifications Data Sheet |
|||||
| Digital channel inputs | D15
to D8, D7 to D0 (RTB-B1 option) |
|||||
| Menu languages | Traditional
Chinese,Simplified Chinese ,English,German,French, Spanish,Italian, Portuguese,Czech,Polish,Russian,Korean,Japanese |
|||||
| Interface | USB
1 port, type B plug, version 2.0 LAN 1 port, 1 Gbit |
|||||
| Choose additional probes | ||||||
| Single-ended passive probes |
RT-ZP03 | 300 MHz, 10 MHz, 10:1/1:1, 10 MΩ/1 MΩ, 400 V, 12 pF/82 pF | ||||
| RT-ZP05 | 500 MHz, 10 MΩ, 10:1, 300 V, 10 pF, 5 mm | |||||
| RT-ZP10 | 500 MHz, 10 MΩ, 10:1, 400 V, 9.5 pF, 2.5 mm | |||||
| RT-ZP1X | 38 MHz, 1 MΩ, 1:1, 55 V, 39 pF, 2.5 mm | |||||
| Active broadband probes: differential | RT-ZD01 | 100 MHz, 1000:1/100:1, 8 MΩ, 1000 V (RMS), 3.5 pF | ||||
| RT-ZD02 | 200 MHz, 10:1, 1 MΩ, 20 V diff., 3.5 pF | |||||
| High voltage single-ended passive probes |
RT-ZH03 | 250 MHz, 100:1, 100 MΩ, 850 V, 6.5 pF | ||||
| RT-ZH10 | 400 MHz, 100:1, 50 MΩ, 1000 V, 7.5 pF | |||||
| RT-ZH11 | 400 MHz, 1000:1, 50 MΩ, 1000 V, 7.5 pF | |||||
| Current probes | RT-ZC02 | 20 kHz, AC/DC, 0.01 V/A and 0.001 V/A, ±200 A and ±2000 A, BNC interface | ||||
| RT-ZC03 | 100 kHz, AC/DC, 0.1 V/A, 30 A, BNC interface | |||||
| RT-ZC10 | 10 MHz, AC/DC, 0.01 V/A, 150 A (RMS), BNC interface | |||||
| RT-ZC20 | 100 MHz, AC/DC, 0.1 V/A, 30 A (RMS), BNC interface | |||||
| RT-ZC30 | 120 MHz, AC/DC, 1 V/A, 5 A (RMS), BNC interface | |||||
| RT-ZA13 | Power supply for current probes | |||||
| Logic probes | RT-ZL03 | Active 8 channel logic probe | ||||
| Option | ||||||
| Hardware | RTB-B1 | Mixed signal option, additional 16 logic channels | ||||
| RTB-B6 | Waveform generator and 4-bit pattern generator | |||||
| Software | RTB-K1 | I2C triggering and decoding and SPI triggering and decoding | ||||
| RTB-K2 | UART/RS-232/RS-422/RS-485 triggering and decoding | |||||
| RTB-K3 | CAN triggering and decoding and LIN triggering and decoding | |||||
| RTB-K15 | History and segmented memory | |||||
| RTB-K36 | Frequency response analysis – Bode plot | |||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
