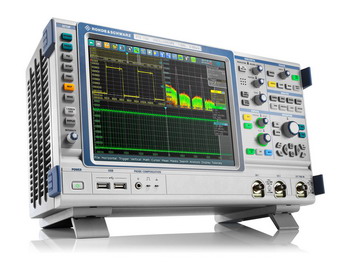

RTE1000 數位式示波器 |
 |
| 產品特點 |
RTE1000示波器整合多領域測試方案包含時間，頻率，協議和邏輯分析功能。從嵌入式設計開發到電力電子技術分析與排除問題，RTE1000讓日常的測試與測量準確且容易。
|
最大帶寬：200MHz至
2GHz| 綜合型錄下載 |
| 型錄下載(英文) |
| 型錄下載(中文) |
規格下載  |
| 使用手冊下載 |
| Specifications | ||||||||
| RTE1XX2 (2CH) | ||||||||
| Item | RTE1022 |
RTE1032 |
RTE1052 |
RTE1102 |
RTE1152 |
RTE1202 |
||
| bandwidth (–3 dB) | 50 Ω |
≧200 MHz |
≧350 MHz |
≧500 MHz |
≧1 GHz |
≧1.5 GHz |
≧2 GHz |
|
1 MΩ |
≧200 MHz |
≧350 MHz |
≧500 MHz |
|||||
| RTE1XX4 (4CH) | ||||||||
| Item | RTE1024 |
RTE1034 |
RTE1054 |
RTE1104 |
RTE1154 |
RTE1204 |
||
| bandwidth (–3 dB) | 50 Ω |
≧ 200 MHz |
≧350 MHz |
≧500 MHz |
≧1 GHz |
≧1.5 GHz |
≧2 GHz |
|
1 MΩ |
≧200 MHz |
≧350 MHz |
≧500 MHz |
|||||
| Vertical system | ||||||||
| Vertical resolution | 8 bit , 16
bit (with high definition mode) |
|||||||
| DC gain accuracy |
|
|||||||
| Input sensitivity | 50Ω input |
0.5 mV/div
to 1 V/div |
||||||
1 MΩ input |
0.5 mV/div
to 10 V/div |
|||||||
| Maximum input voltage |
50Ω input |
5 V (RMS), max. | ||||||
1 MΩ input |
150 V (RMS),
200 V (Vp), derates at 20 dB/decade to 5 V (RMS) above 250 kHz |
|||||||
| Rise time/fall time | < 1.75 ns |
< 1 ns |
< 700 ps |
< 350 ps |
< 233 ps |
< 175 ps |
||
| Horizontal system | ||||||||
| Timebase | range |
50 ps/div
~ 5000 s/div |
||||||
accuracy |
±4 ppm (during
calibration interval) |
|||||||
| Trigger system | ||||||||
| Trigger types | edge, glitch,
width, runt, window, timeout, interval, slew rate, data2clock, pattern, state, serial pattern, TV/video, serial bus trigger (optional) |
|||||||
| Analysis and measurement functions | ||||||||
| Automatic measurements | 77 measurement
functions |
|||||||
| Cursor measurements | 2 cursor sets,
each consisting of two horizontal and two vertical cursors |
|||||||
| Waveform mathematics | 4 math waveforms; mathematics, logical operations, comparison, FIR filter, FFT |
|||||||
| MSO option | ||||||||
| Digital channels | 16 (2 logic
probes) |
|||||||
| Input impedance | 100 k || 4
pF |
|||||||
| Sampling rate | 5 Gsample/s
per channel |
|||||||
| Acquisition memory | 100 Msample
per channel |
|||||||
| Parallel buses | up to 4 |
|||||||
| Menu languages | multiple
languages |
|||||||
| Interface | USB 2port,
type A plug, version 3.0 LAN 1 port, 10/100/1000BASE-T GPIB (RTE-B10 option) |
|||||||
| Choose additional probes | ||||||||
| Base unit | RTE-ZP10 500
MHz passive probe per channel |
|||||||
| Single-ended passive probes |
RT-ZP10 | 500 MHz, passive, 10:1, 1 MΩ || 9.5 pF, max. 400 V | ||||||
| RT-ZH10 | 400 MHz, passive, high-voltage, 100:1, 50 MΩ || 7.5 pF, 1 kV (RMS) | |||||||
| RT-ZH11 | 400 MHz, passive, high-voltage, 1000:1, 50 MΩ || 7.5 pF, 1 kV (RMS) | |||||||
| Active broadband probes: single-ended |
RT-ZS10E | 1.0 GHz, active, 1 MΩ || 0.8 pF | ||||||
| RT-ZS10 | 1.0 GHz, active, 1 MΩ || 0.8 pF, R&S ProbeMeter, micro button | |||||||
| RT-ZS20 | 1.5 GHz, active, 1 MΩ || 0.8 pF, R&S ProbeMeter, micro button | |||||||
| RT-ZS30 | 3.0 GHz, active, 1 MΩ || 0.8 pF, R&S ProbeMeter, micro button | |||||||
| Active broadband probes: differential | RT-ZD10 | 1.0 GHz, active, differential, 1 MΩ || 0.6 pF, R&S ProbeMeter, micro button | ||||||
| RT-ZD20 | 1.5 GHz, active, differential, 1 MΩ || 0.6 pF, R&S ProbeMeter, micro button | |||||||
| RT-ZD30 | 3.0 GHz, active, differential, 1 MΩ || 0.6 pF, R&S ProbeMeter, micro button | |||||||
| High voltage probes: differential | RT-ZD01 | 100 MHz, high-voltage, active, differential, 8 MΩ || 3.5 pF, 1 kV (RMS) (CAT III) | ||||||
| Current probes | RT-ZC10 | 10 MHz, current, AC/DC, 0.01 V/A, 150 A (RMS) | ||||||
| RT-ZC20 | 100 MHz, current, AC/DC, 0.1 V/A, 30 A (RMS) | |||||||
| RT-ZC30 | 120 MHz, AC/DC, 1 V/A, 5 A (RMS) | |||||||
| RT-ZC05B | 2 MHz, current, AC/DC, 0.01 V/A, 500 A (RMS), R&S probe interface | |||||||
| RT-ZC10B | 10 MHz, current, AC/DC, 0.01 V/A, 150 A (RMS), R&S probe interface | |||||||
| RT-ZC15B | 50 MHz, AC/DC, 0.1 V/A, 30 A (RMS), R&S probe interface | |||||||
| RT-ZC20B | 100 MHz, current, AC/DC, 0.1 V/A, 30 A (RMS), R&S probe interface | |||||||
| Multi-channel power probe | RT-ZVC02 | 2 × 2 voltage/current channels, for R&S RTO2000/R&S RTE | ||||||
| RT-ZVC04 | 2 × 4 voltage/current channels, for R&S RTO2000/R&S RTE | |||||||
| Option | ||||||||
| Hardware | RTE-B1 | Mixed signal option, 400 MHz, 5 Gsample/s, 16 channels, Memory 100 Msample/channel | ||||||
| RTE-B1E | Digital extension port for R&S
RT-ZVCxx usage with R&S RTE oscilloscope, included in R&S RTE-B1 |
|||||||
| RTE-B6 | Arbitrary waveform generator, 100 MHz, 2 analog channels, 8-bit pattern generator | |||||||
| RTE-B10 | GPIB interface | |||||||
| Software |
RTE-K1 | I2C/SPI serial triggering and decoding | ||||||
| RTE-K2 | UART/RS-232/RS-422/RS-485 serial triggering and decoding | |||||||
| RTE-K3 | CAN/LIN serial triggering and decoding | |||||||
| RTE-K4 | FlexRay serial triggering and decoding | |||||||
| RTE-K5 | I2S serial triggering and decoding | |||||||
| RTE-K6 | MIL-STD-1553 serial triggering and decoding | |||||||
| RTE-K7 | ARINC 429 triggering and decoding | |||||||
| RTE-K8 | Ethernet serial decoding | |||||||
| RTE-K9 | CAN-FD serial triggering and decoding | |||||||
| RTE-K10 | SENT serial triggering and decoding | |||||||
| RTE-K50 | Manchester and NRZ serial triggering and decoding | |||||||
| RTE-K55 | MDIO serial triggering and decoding | |||||||
| RTE-K57 | IEEE 100BASE-T1 serial triggering and decoding | |||||||
| RTE-K60 | USB 1.0/1.1/2.0/HSIC serial triggering and decoding | |||||||
| RTE-K63 | USB power delivery serial triggering and decoding | |||||||
| RTE-K65 | SpaceWire serial triggering and decoding | |||||||
| RTE-K76 | CXPI serial triggering and decoding | |||||||
| Analysis | RTE-K18 | Spectrum analysis | ||||||
| RTE-K31 | Power analysis | |||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
