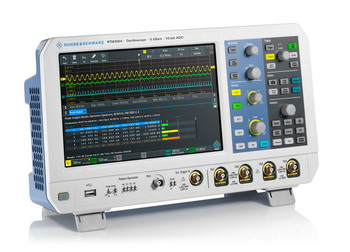

RTM3000 數位式示波器



產品特點

最大帶寬：100MHz至 1GHz
最大採樣率：5 Gsample/s
最大記憶深度：80 Msample
10 bits垂直分辨率
顯示屏：10.1英寸電容式觸摸屏
內建USB+LAN標準介面

綜合型錄下載

型錄下載(英文)

型錄下載(中文)
規格下載
使用手冊下載


Specifications
RTM3002 (2CH)
Item
RTM3002
RTM3002
with -B222
RTM3002
with -B223
RTM3002
with -B225
RTM3002
with -B2210
Bandwidth(–3 dB)
50 Ω
> 100 MHz
> 200 MHz
> 350 MHz
> 500 MHz
> 1 GHz
1 MΩ
> 100 MHz
> 200 MHz
> 350 MHz
> 500 MHz
> 500 MHz
RTM3004 (4CH)
Item
RTM3004
RTM3004
with -B242
RTM3004
with -B243
RTM3004
with -B245
RTM3004
with -B2410
Bandwidth
50 Ω
> 100 MHz
> 200 MHz
> 350 MHz
> 500 MHz
> 1 GHz
1 MΩ
> 100 MHz
> 200 MHz
> 350 MHz
> 500 MHz
> 500 MHz
Vertical system
Vertical resolution
10 bit, up to 16 bit with high resolution decimation
DC gain accuracy
±1.5 % (input sensitivity > 5 mV/div)
±2 % ...(input sensitivity ≦ 5 mV/div)
Input sensitivity
50Ω
0.5 mV/div to 1 V/div
1 MΩ
0.5 mV/div to 10 V/div
Rise time
< 3.5 ns
< 1.75 ns
< 1 ns
< 700 ps
< 350 ps
Horizontal system
Timebase
range
0.5 ns/div and 500 s/div
accuracy
±2.5 ppm
Acquisition system
Maximum realtime sampling rate
2.5 Gsample/s; 5 Gsample/s, interleaved
Acquisition memory standard
40 Msample (80 Msample interleaved)
RTM-K15 option
400 Msample segmented memory
Trigger system
Trigger
standard
edge, width, video (PAL, NTSC, SECAM, PAL-M, SDTV 576i,
HDTV 720p, HDTV 1080i, HDTV 1080p), pattern, line, serial bus, timeout
option
I2C, SPI, UART/RS-232/RS-422/RS-485, CAN/LIN,
ARINC 429, MIL-STD-1553
 MSO option
Digital channel
16 (2 logic probes)
Sampling rate
1.25 Gsample/s
Menu languages
Traditional Chinese,Simplified Chinese ,English,German,French,
Spanish,Italian, Portuguese,Czech,Polish,Russian,Korean,Japanese
Interface
USB 1 port, type B plug, version 2.0
LAN 1 port, 1 Gbit

Choose additional probes
Base unit standard accessories: RT-ZP05S 500 MHz passive probe per channel
Single-ended
passive probes		 RT-ZP05S 500 MHz, 10 MΩ, 10:1, 300 V, 10 pF, 5 mm
RT-ZP10 500 MHz, 10 MΩ, 10:1, 400 V, 9.5 pF, 2.5 mm
RT-ZP1X 38 MHz, 1 MΩ, 1:1, 55 V, 39 pF, 2.5 mm
Active broadband
probes:
single-ended		 RT-ZS10L 1.0 GHz, 10:1, 1 MΩ, BNC interface
RT-ZS10E 1.0 GHz, active, 1 MΩ, R&S interface
RT-ZS10 1.0 GHz, active, 1 MΩ, R&S ProbeMeter, micro button, R&S probe interface
RT-ZS20 1.5 GHz, active, 1 MΩ, R&S ProbeMeter, micro button, R&S probe interface
Active broadband probes: differential RT-ZD10 1.0 GHz, active, differential, 1 MΩ, R&S ProbeMeter, micro button,
incl. 10:1 external attenuator, 1 MΩ, 70 V DC, 46 V AC (peak),
R&S probe interface
RT-ZD20 1.5 GHz, active, differential, 1 MΩ, R&S ProbeMeter, micro button,
R&S probe interface
Power integrity probe RT-ZPR20
 2.0 GHz, 1:1, 50 kΩ, ±0.85 V, ±60 V offset, R&S probe interface
High voltage
single-ended
passive probes		 RT-ZH03 250 MHz, 100:1, 100 MΩ, 850 V, 6.5 pF
RT-ZH10 400 MHz, 100:1, 50 MΩ, 1000 V, 7.5 pF
RT-ZH11 400 MHz, 1000:1, 50 MΩ, 1000 V, 7.5 pF
High voltage probes: differential RT-ZD002 25 MHz, 20:1/200:1, 4 MΩ, 1.4 kV (CAT III), BNC interface
RT-ZD003 25 MHz, 10:1/100:14 MΩ, 700 V (CAT II), BNC interface
RT-ZD01 100 MHz, 8 MΩ, 1 kV (RMS) (CAT III), BNC interface
RT-ZD02 200 MHz, 10:1, ±20 V, BNC interface
RT-ZD08 800 MHz, 10:1, 200 kΩ, ±15 V, BNC interface
RT-ZHD07 200 MHz, 250:1/25:1, 5 MΩ, 750 V (peak), 300 V CAT III, R&S probe interface
RT-ZHD15 100 MHz, 500:1/50:1, 10 MΩ, 1500 V (peak), 1000 V CAT III, R&S probe interface
RT-ZHD16 200 MHz, 500:1/50:1, 10 MΩ, 1500 V (peak), 1000 V CAT III, R&S probe interface
RT-ZHD60 100 MHz, 1000:1/100:1, 40 MΩ, 6000 V (peak), 1000 V CAT III, R&S probe interface
Current probes RT-ZC02 20 kHz, AC/DC, 0.01 V/A and 0.001 V/A, ±200 A and ±2000 A, BNC interface
RT-ZC03 100 kHz, AC/DC, 0.1 V/A, 30 A, BNC interface
RT-ZC05B 2 MHz, AC/DC, 0.01 V/A, 500 A (RMS), R&S probe interface
RT-ZC10 10 MHz, AC/DC, 0.01 V/A, 150 A (RMS), BNC interface
RT-ZC10B 10 MHz, AC/DC, 0.01 V/A, 150 A (RMS), R&S probe interface
RT-ZC15B 50 MHz, AC/DC, 0.1 V/A, 30 A (RMS), R&S probe interface
RT-ZC20 100 MHz, AC/DC, 0.1 V/A, 30 A (RMS), BNC interface
RT-ZC20B 100 MHz, AC/DC, 0.1 V/A, 30 A (RMS), R&S probe interface
RT-ZC30 120 MHz, AC/DC, 1 V/A, 5 A (RMS), BNC interface
EMC near-field probes HZ-15 Probe set for E and H near-field measurements, 30 MHz to 3 GHz
Logic probes RT-ZL04 400 MHz logic probe, 8 channels

Option
Hardware RTM-B1 Mixed signal option, additional 16 logic channels
RTM-B6 Waveform generator and 4-bit pattern generator
Software RTM-K1 I2C triggering and decoding and SPI triggering and decoding
RTM-K2 UART/RS-232/RS-422/RS-485 triggering and decoding
RTM-K3 CAN triggering and decoding and LIN triggering and decoding
RTM-K5 Audio (I2S, LJ, RJ, TDM) triggering and decoding
RTM-K6 MIL-STD-1553 triggering and decoding
RTM-K7 ARINC 429 triggering and decoding
RTM-K15 History and segmented memory
RTM-K18 Spectrum analysis and spectrogram
RTM-K31 Power analysis
RTM-K36 Frequency response analysis – Bode plot


















.
